Alterations & Additions

Architectural Drawings are required for Council Approval.

After the Council Approval Process the Architectural Drawings can be used by a Builder to Construct Your Home.

Below are Architectural slideshows of my recent Architectural Drafting Work. Click the screen to pause the slideshow. You can also enlarge the slideshow screen.

Please note I have recently changed my Business name from 3D Archpix Drafting, which is noted on the Drawings, to my current Business name Bates Design & Drafting. I have the same ABN.

Alterations & Additions Including a Pool

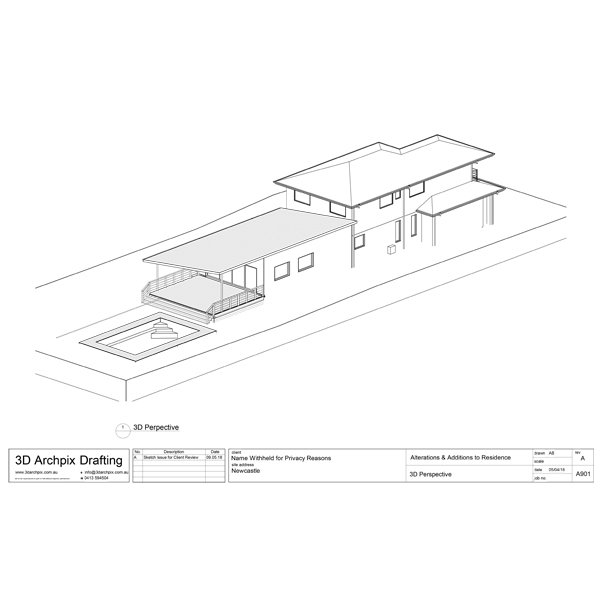

Below is a 3D Perspective Drawing or Birds Eye View of the finished extension, along with a slide show of some of the Architectural Drawings required to complete the work for Council Approval and to Builders enable Builders to provide a quote.

Ground Level Alterations & Additions along with an In-Ground Pool.

Upper Level Addition to Main Residence

Upper Level Addition to Main Residence along with Ground Floor Alterations.

Ground Floor Alterations & Additions to Rear of Property

The Alterations & Additions include an Addition to the Main Residence, along with a Studio converted into a Granny Flat.

Rear Upper Level Deck Addition

Upper Level Rear Deck Addition for DA & CC Approval.

Addition to Rear of Home

Addition to Rear of Home.

Alterations & Additions to Upper Level of Shop Front with New Signage included in Application.

Approved Architectural Drawings for DA Approval of Residence above a Commercial Shop Front. Design for Fire Standards and Shop Signage included in Approved DA Application.
